PM DC MOTOR

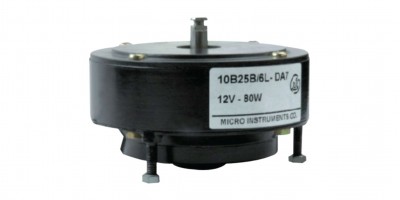

PMDC Motor specially designed for automotive condenser, Radiator and Blower. The motor is of Insulation class B.
PMDC motors are designed keeping field condition of India in mind. They have features like rust proof shaft spark free winding design, self-lubricated bearing system etc. Motor with fan shroud assy. available.
| M | Micro | ||||
| DC | DC Motor | ||||
| XX | Fan Diameter in cm | ||||
| XX | Motor Diameter in cm | ||||
| X | S- Sleeve/ B- Bearing | ||||
| XX | Motor Sleeve Height | ||||
| XX | Mounting
| ||||
| / X | Voltage Rating 3-12V, 4-24V | ||||
| X | T-Terminal/L-Lead | ||||
| - XXX | Internal Code |

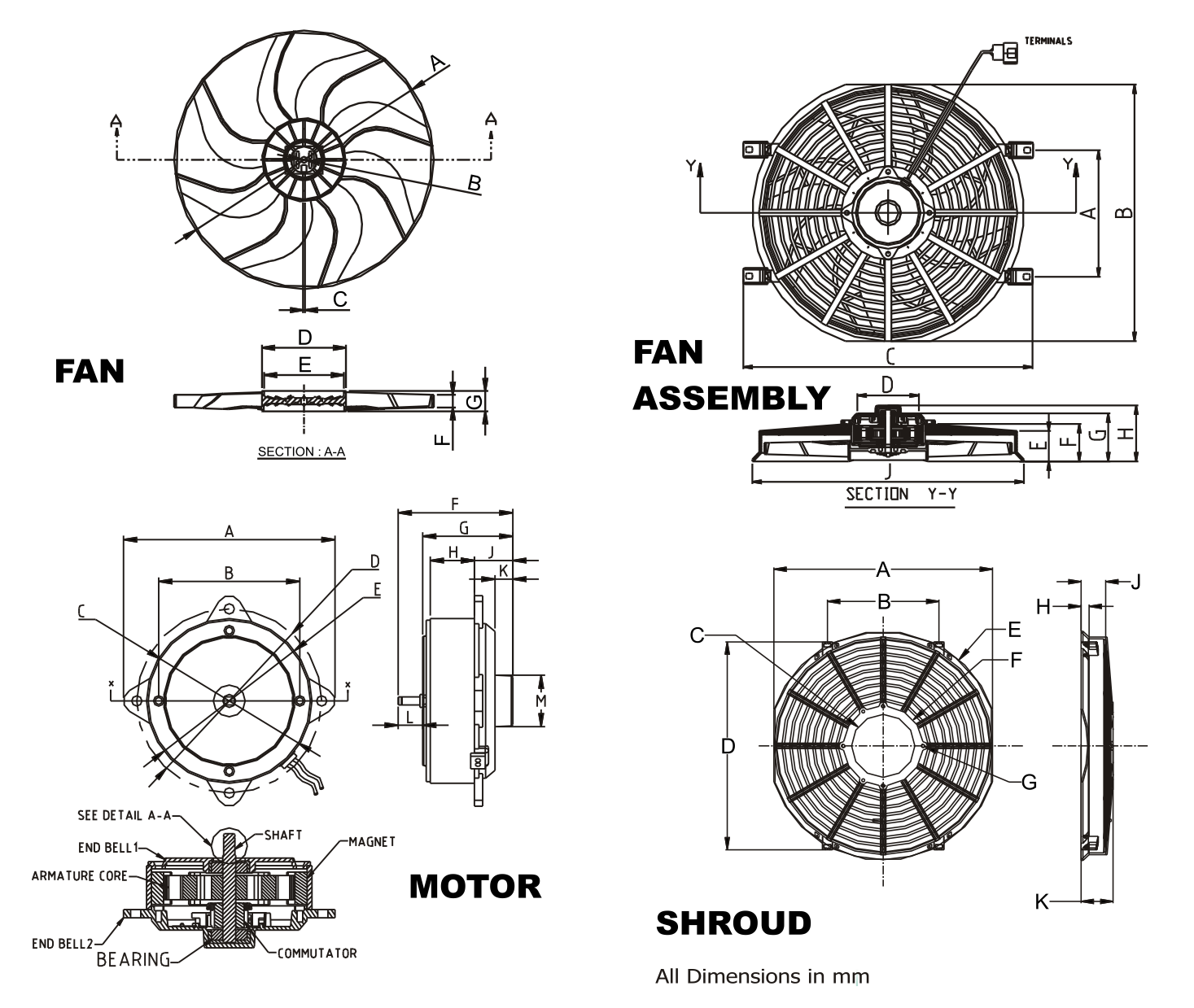

Mechanical Dimensions (MM)
| MODEL NO. | A | B | C | D | E | F | G | H | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| + 1.0 | + 0.5 | + 1.0 | + 0.5 | + 1.0 | + 0.5 | + 0.5 | + 0.5 | + 0.5 | + 0.5 | + 0.5 | + 0.5 | |
| MDC35-10B30F/3L-DA1 | 130.5 | 87.0 | 100 | 114 | 102 | 70.7 | 55.5 | 29 | 23.7 | 11 | 15.1 | 32 |
| MDC40-10B30F/3L-DB1 | 130.5 | 87.0 | 100 | 114 | 102 | 70.7 | 55.5 | 29 | 23.7 | 11 | 15.1 | 32 |
| 10B25B/3L-DA7 | 130.5 | 87.0 | 100 | 114 | 102 | 70.7 | 55.5 | 29 | 23.7 | 11 | 15.1 | 32 |
| MDC35-10B30F/3L-DA1 | 130.5 | 87.0 | 100 | 114 | 102 | 70.7 | 55.5 | 29 | 23.7 | 11 | 15.1 | 32 |
| MDC35-10B30F/3L-DA1 | 130.5 | 87.0 | 100 | 114 | 102 | 70.7 | 55.5 | 29 | 23.7 | 11 | 15.1 | 32 |
| MDC35-10B30F/3L-DA1 | 130.5 | 87.0 | 100 | 114 | 102 | 70.7 | 55.5 | 29 | 23.7 | 11 | 15.1 | 32 |
| MDC35-10B30F/3L-DA1 | 130.5 | 87.0 | 100 | 114 | 102 | 70.7 | 55.5 | 29 | 23.7 | 11 | 15.1 | 32 |
Impeller Dimensions (MM)
| MODEL NO. | A + 1.0 | B + 1.0 | C + 0.5 | D + 0.5 | E + 0.5 | F + 0.5 | G + 0.5 |
|---|---|---|---|---|---|---|---|
| MDC35-10B30F/6L-DA1 | 341 | 8.00 | 2.5 | 111.2 | 106 | 17 | 27.5 |
| MDC35-10B30F/6L-DA1 | 388 | 8.00 | 2.5 | 109.5 | 104 | 10.5 | 21.5 |
Shroud Dimensions (MM)
| MODEL NO. | A + 1.0 | B + 1.0 | C + 0.5 | D + 0.5 | E + 0.5 | F + 0.5 | G + 0.25 | H + 0.5 | J + 0.5 | K + 0.5 |
|---|---|---|---|---|---|---|---|---|---|---|
| MDC35-10B30F/6L-DA1 | 358 | 180.5 | 103.2 | 339 | 379 | 114 | 114.1 | 13 | 40 | 52.2 |
| MDC35-10B30F/6L-DA1 | 408 | 277 | 103.2 | 339 | 426 | 114 | 114.1 | 12.7 | 34 | 52.2 |
Assembly Dimensions (MM)
| MODEL NO. | A + 0.5 | B + 1.0 | C + 1.0 | D + 0.5 | E + 0.5 | F + 0.5 | G + 1.0 | H + 1.0 | J + 1.0 |
|---|---|---|---|---|---|---|---|---|---|
| MDC35-10B30F/6L-DA1 | 180.5 | 358 | 402 | 86 | 40.5 | 52.2 | 67.0 | 78 | 379 |
| MDC35-10B30F/6L-DA1 | 277 | 408 | 402 | 86 | 34.5 | 52.2 | 67.0 | 78 | 426 |
- Automotive condenser
- Automotive radiator
- Blower
Electrical Performance
| MODEL NO. | DC Voltage volt | No Load | TORQUE | CAP 440V | NO OF SPEEDS | ||
|---|---|---|---|---|---|---|---|
| Current Amp. | Speed Rpm | Current Amp. | |||||
| MDC35-10B30F/3L-DA1 | 12 | <2 | 2500 | 9 | 110 | 2150 | >1700 |
| MDC40-10B30F/3L-DB1 | 12 | <2 | 2500 | 9 | 110 | 2250 | >1900 |
| 10B25B/3L-DA7 | 12 | <2 | 2500 | 6.5 | 80 | 2100 | >1200* |
| 10B40F/3L-DA3 | 12 | <4 | 3000 | 16.5 | 200 | 2550* | |
| 10B40F/3L-DA4 | 12 | <3 | 3000 | 12.5 | 150 | 2300* | |
| 10B53F/3L-DA5 | 12 | <5 | 3500 | 29 | 350 | 2700 | |
| Technical Datasheet | Download |
